Shaft | SPIDERBOWS Raven.One KevTech - 6.2 mm - Carbon

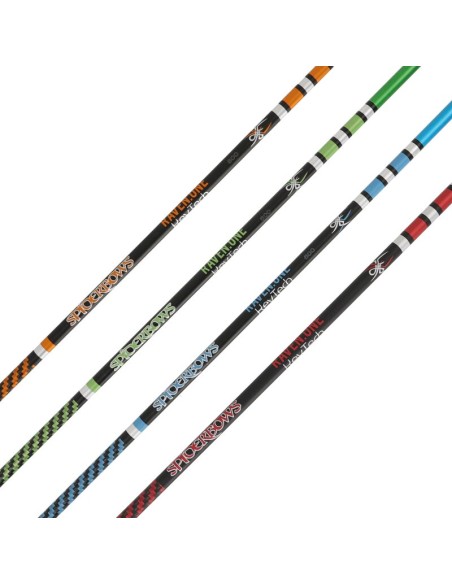

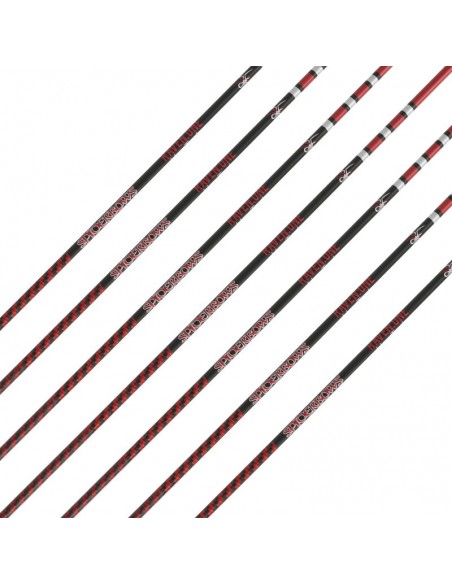

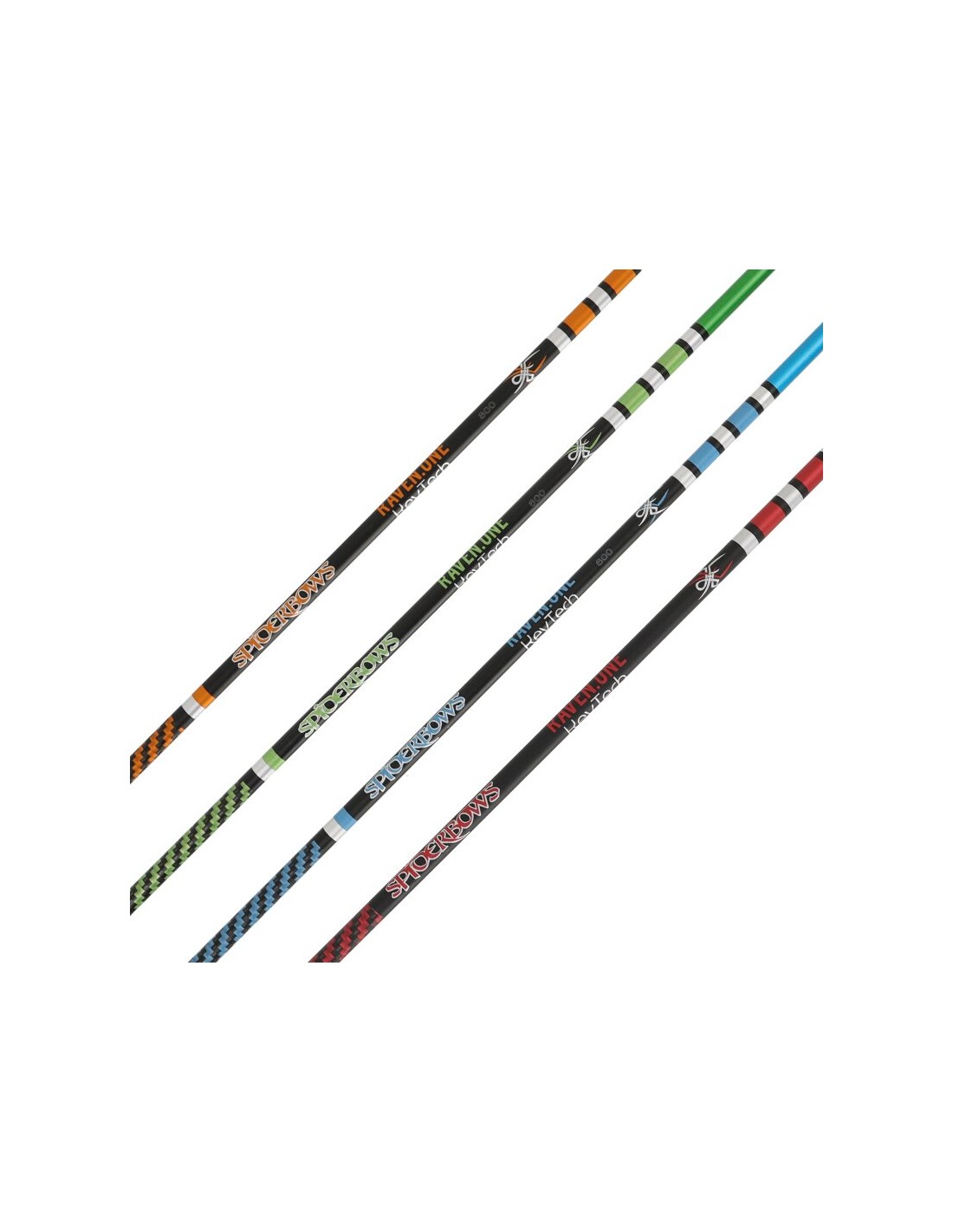

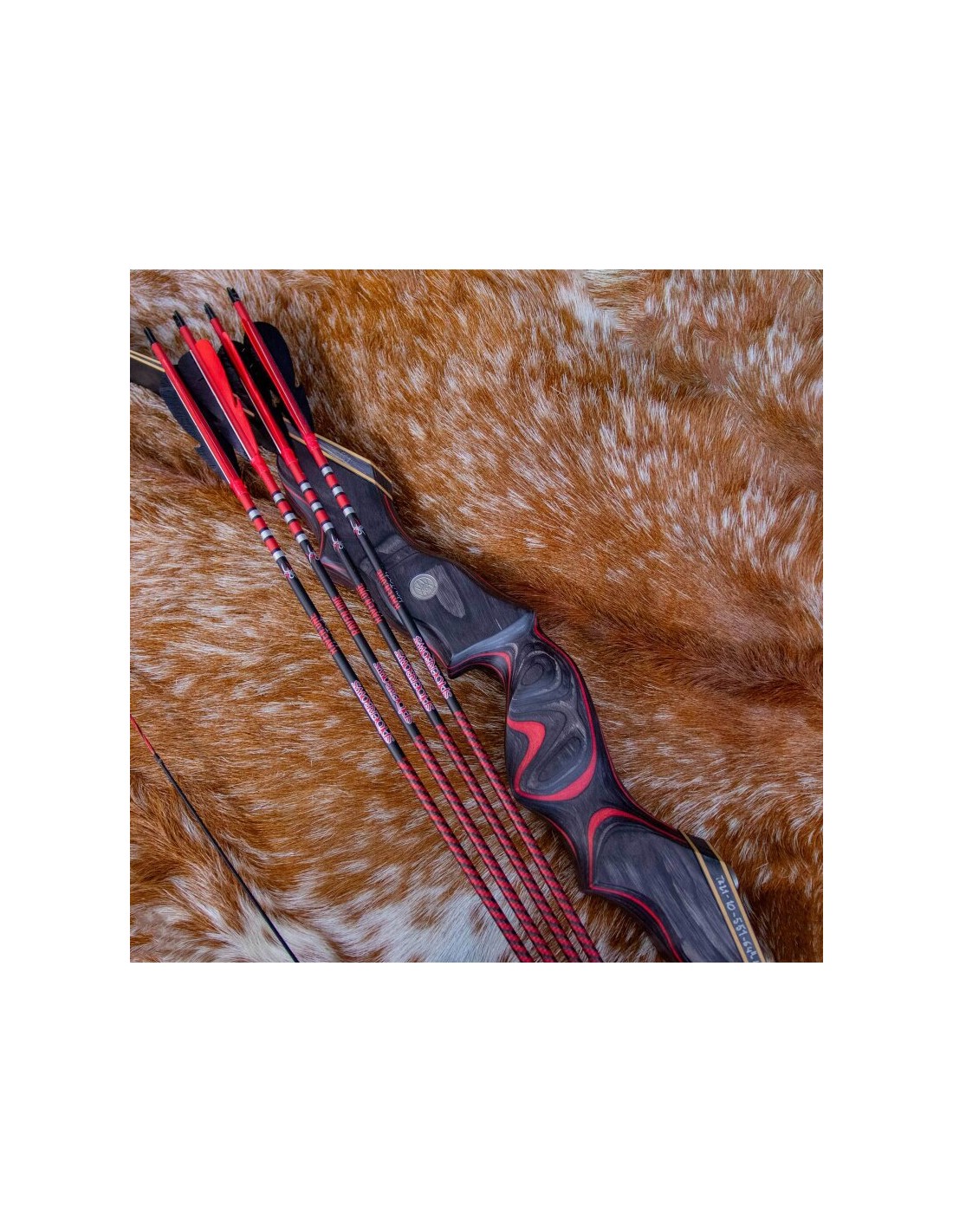

The first shaft and arrow series from SPIDERBOWS is here! - With the Raven.One KevTech, SPIDERBOWS is launching its first arrow series in a modern design that is perfect for 3D archery. Noble dark red, fresh green, cool blue or warm orange dominate the exterior of the shaft, which can be found on the side of the fletching as a single-coloured cresting, from which every kind of fletching stands out beautifully. The cresting passes through rings in black and silver into the discreet inscription on a black background, followed by the highlight of Raven.One: the characteristic red, green, blue or orange-black Kevlar look that extends to the tip. All in all, a combination that immediately catches the eye of every archer.

With an inner diameter of 6.2 mm / 0.246 inch, the carbon shaft is especially designed for archers who prefer a thin arrow. The shaft has a straightness of ± 0.006 inch and is a real lightweight at 32 inch length. This guarantees precise shots with a flat trajectory even at long distances.

The Raven.One KevTech is available in spines from 400 to 800 and is suitable for all components such as tips, bushings and pins with a (shaft) diameter of 6.2 mm / 0.246 inch.

Technical data:

• Spine 400
  • Ø inside: 0.246 inch / 6.20mm
  • Ø outside: 7.40mm
  • Shaft weight (in grains per inch): 7.84gr
  • Straightness (in inches): ±0.006
  • Fitting Size Protector Ring / SPHERE Nock Collar: 7.45
  • Length:
    • Full Arrow: 32 in.
    • Factory fletched (selectable): 24-32 in.
    • Custom (selectable): 24-32 inch
  • Tip:
    • Full arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching:

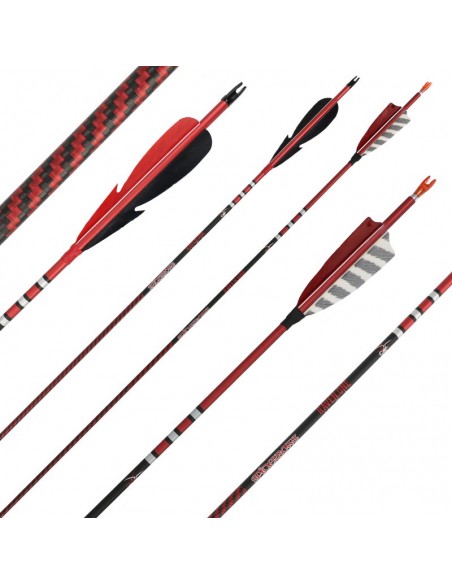

    • Full arrow: natural feathers, 3 inch shield (red/red/barred white)
    • Factory fletched: Natural feathers, 3 inch shield (red/red/barred white)
    • Custom: colour and from selectable
  • Nock:
    • Full arrow: DRAKE S-Nock 3D - Colour: Red
    • Factory fletched: DRAKE S-Nock 3D - Colour: Red
    • Custom: DRAKE S-Nock 3D - Colour: Red

• Spine 500
  • Ø inside: 0.246 inch / 6.20mm
  • Ø outside: 7.16mm
  • Shaft weight (in grains per inch): 7.02gr
  • Straightness (in inches): ±0.006
  • Fitting Size Protector Ring / SPHERE Nock Collar: 7.30
  • Length:
    • Full arrow: 32 in.
    • Factory fletched (selectable): 24-32 in.
    • Custom (selectable): 24-32 inch
  • Tip:
    • Full arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching:
    • Full arrow: natural feathers, 3 inch shield (red/red/barred white)
    • Factory fletched: Natural feathers, 3 inch shield (red/red/barred white)
    • Custom: colour and from selectable
  • Nock:
    • Full arrow: DRAKE S-Nock 3D - Colour: Red
    • Factory fletched: DRAKE S-Nock 3D - Colour: Red
    • Custom: DRAKE S-Nock 3D - Colour: Red

• Spine 600
  • Ø inside: 0.246 inch / 6.20mm
  • Ø outside: 7.03mm
  • Shaft weight (in grains per inch): 5.44gr
  • Straightness (in inches): ±0.006
  • Fitting Size Protector Ring / SPHERE Nock Collar: 7.15
  • Length:
    • Full arrow: 32 in.
    • Factory fletched (selectable): 24-32 in.
    • Custom (selectable): 24-32 inch
  • Tip:
    • Full arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching:
    • Full arrow: natural feathers, 3 inch shield (red/red/barred white)
    • Factory fletched: Natural feathers, 3 inch shield (red/red/barred white)
    • Custom: colour and from selectable
  • Nock:
    • Full arrow: DRAKE S-Nock 3D - Colour: Red
    • Factory fletched: DRAKE S-Nock 3D - Colour: Red
    • Custom: DRAKE S-Nock 3D - Colour: Red

• Spine 700
  • Ø inside: 0.246 inch / 6.20mm
  • Ø outside: 7.03mm
  • Shaft weight (in grains per inch): 5.33gr
  • Straightness (in inches): ±0.006
  • Fitting Size Protector Ring / SPHERE Nock Collar: 7.15
  • Length:
    • Full arrow: 32 in.
    • Factory fletched: (selectable): 24-32 in.
    • Custom (selectable): 24-32 inch
  • Tip:
    • Full arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching:
    • Full arrow: natural feathers, 3 inch shield (red/red/barred white)
    • Factory fletched: Natural feathers, 3 inch shield (red/red/barred white)
    • Custom: colour and from selectable
  • Nock:
    • Full arrow: DRAKE S-Nock 3D - Colour: Red
    • Factory fletched: DRAKE S-Nock 3D - Colour: Red
    • Custom: DRAKE S-Nock 3D - Colour: Red

• Spine 800
  • Ø inside: 0.246 inch / 6.20mm
  • Ø outside: 7.00mm
  • Shaft weight (in grains per inch): 5.05gr
  • Straightness (in inches): ±0.006
  • Fitting Size Protector Ring / SPHERE Nock Collar: 7.15
  • Length:
    • Full arrow: 32 in.
    • Factory fletched (selectable): 24-32 in.
    • Custom (selectable): 24-32 inch
  • Tip:
    • Full arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching:
    • Full arrow: natural feathers, 3 inch shield (red/red/barred white)
    • Factory fletched: Natural feathers, 3 inch shield (red/red/barred white)
    • Custom: colour and from selectable
  • Nock:
    • Full arrow: DRAKE S-Nock 3D - Colour: Red
    • Factory fletched: DRAKE S-Nock 3D - Colour: Red
    • Custom: DRAKE S-Nock 3D - Colour: Red

Scope of delivery:
1x Shaft
