OPTACS Ballistic Chronograph - Speedometer

OPTACS Ballistic Chronograph - Speedometer

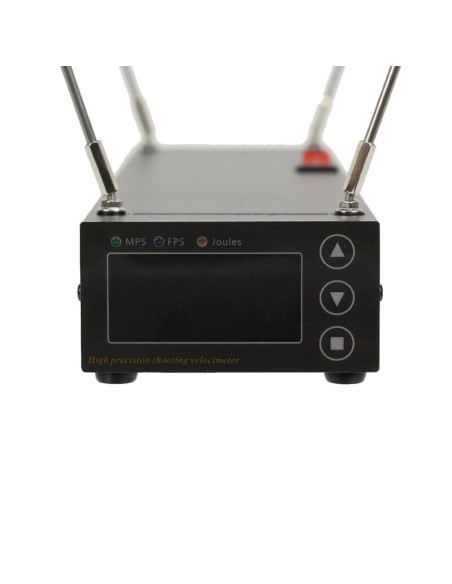

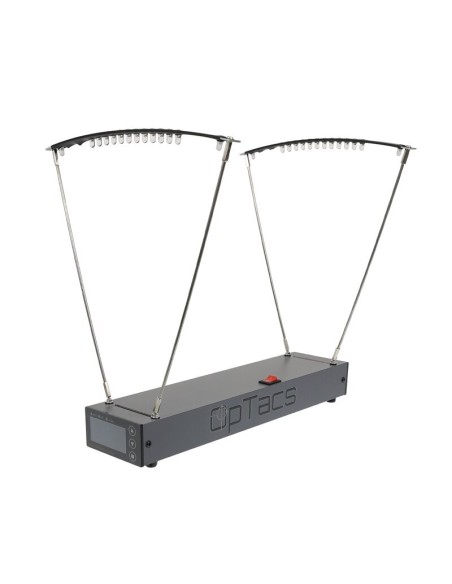

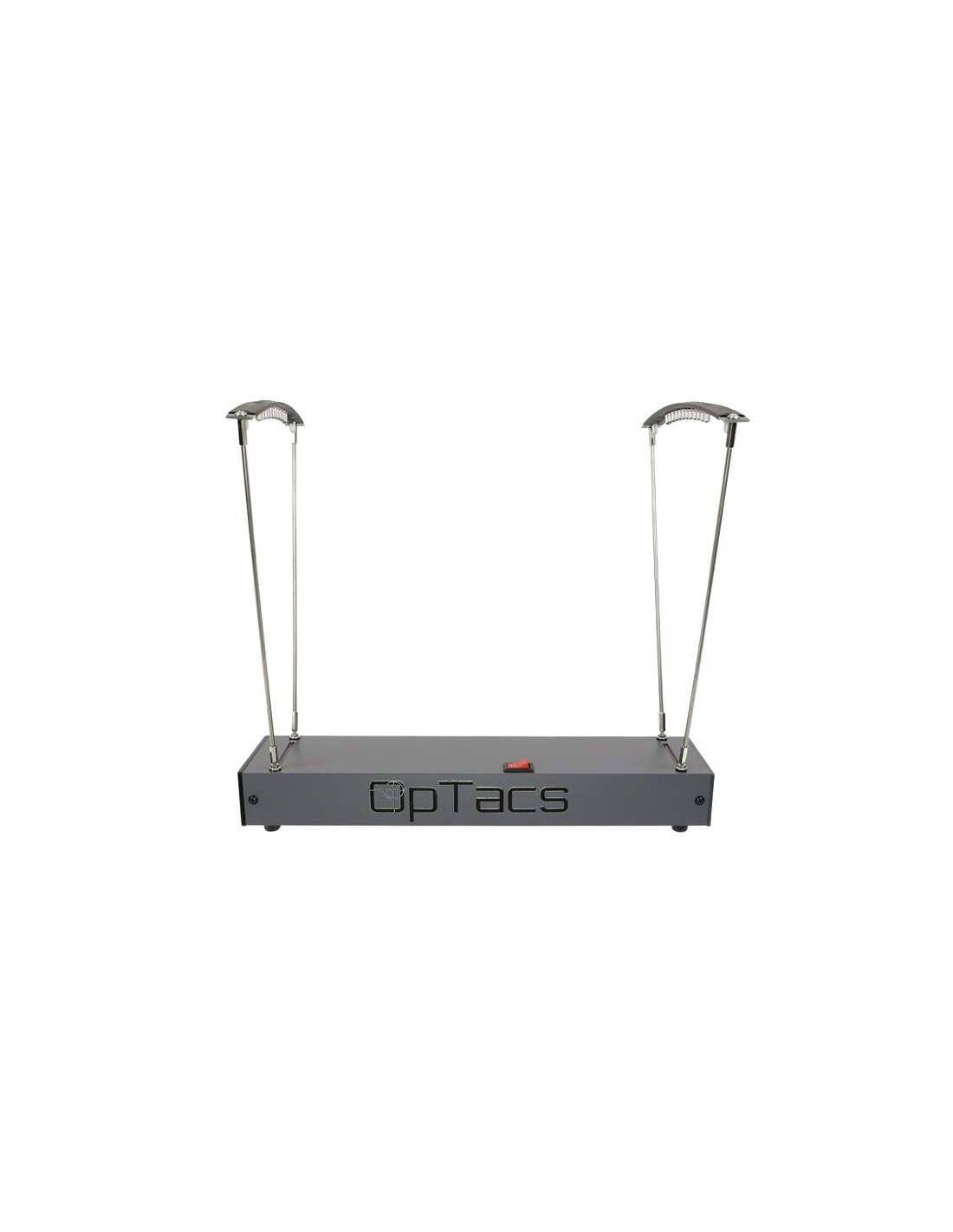

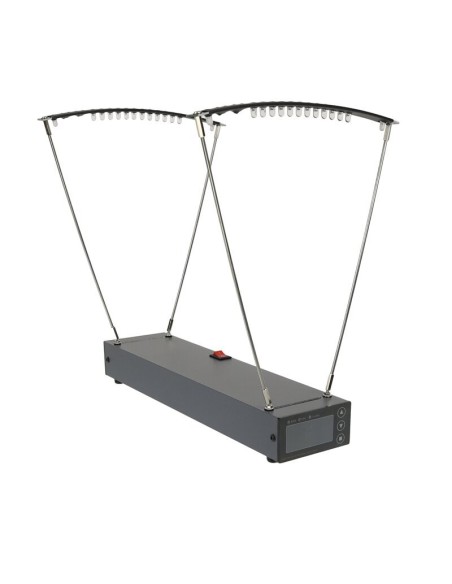

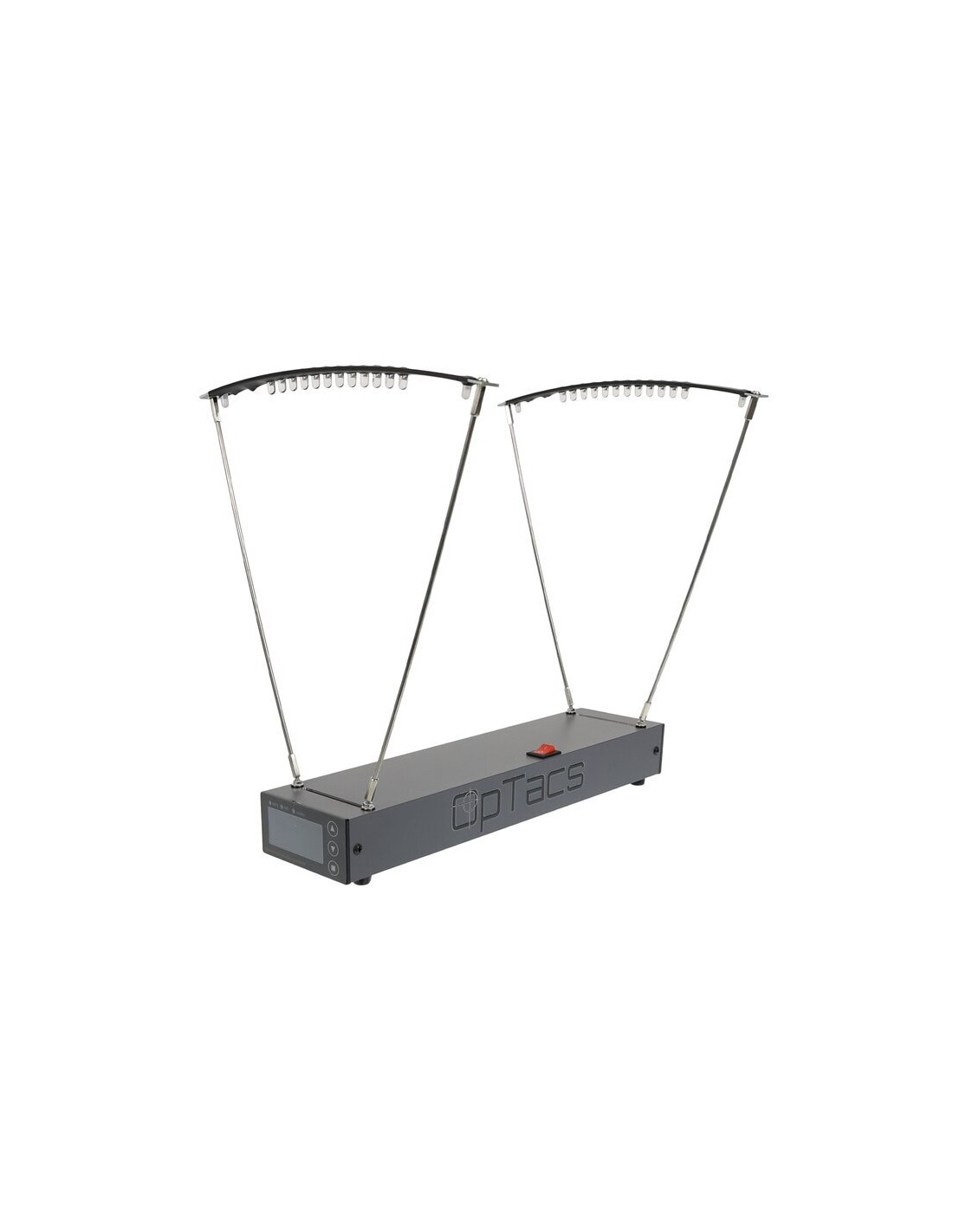

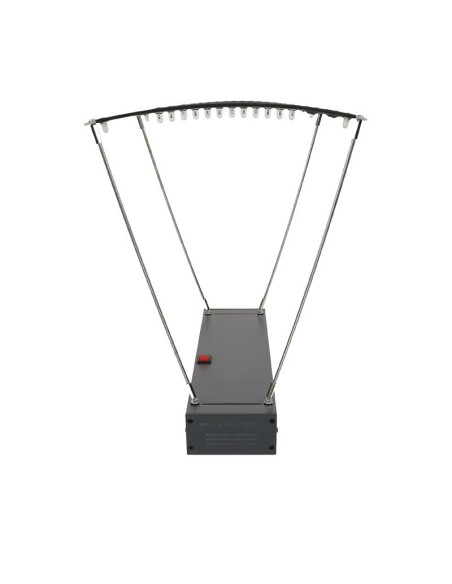

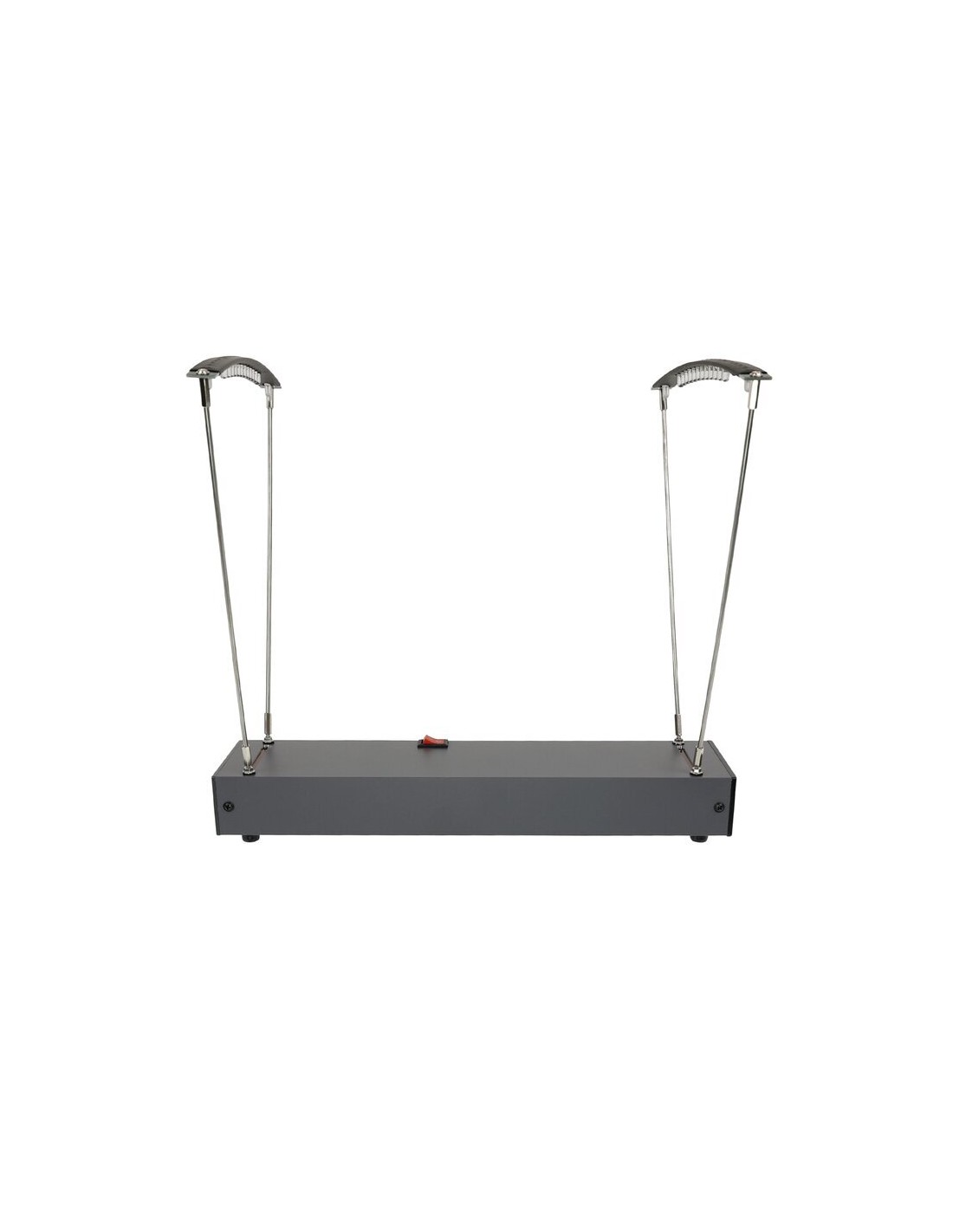

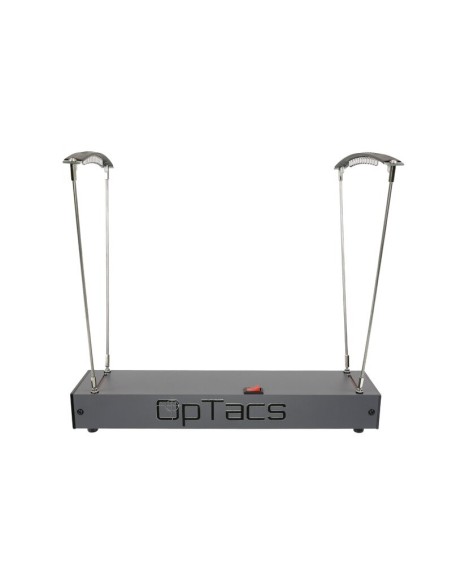

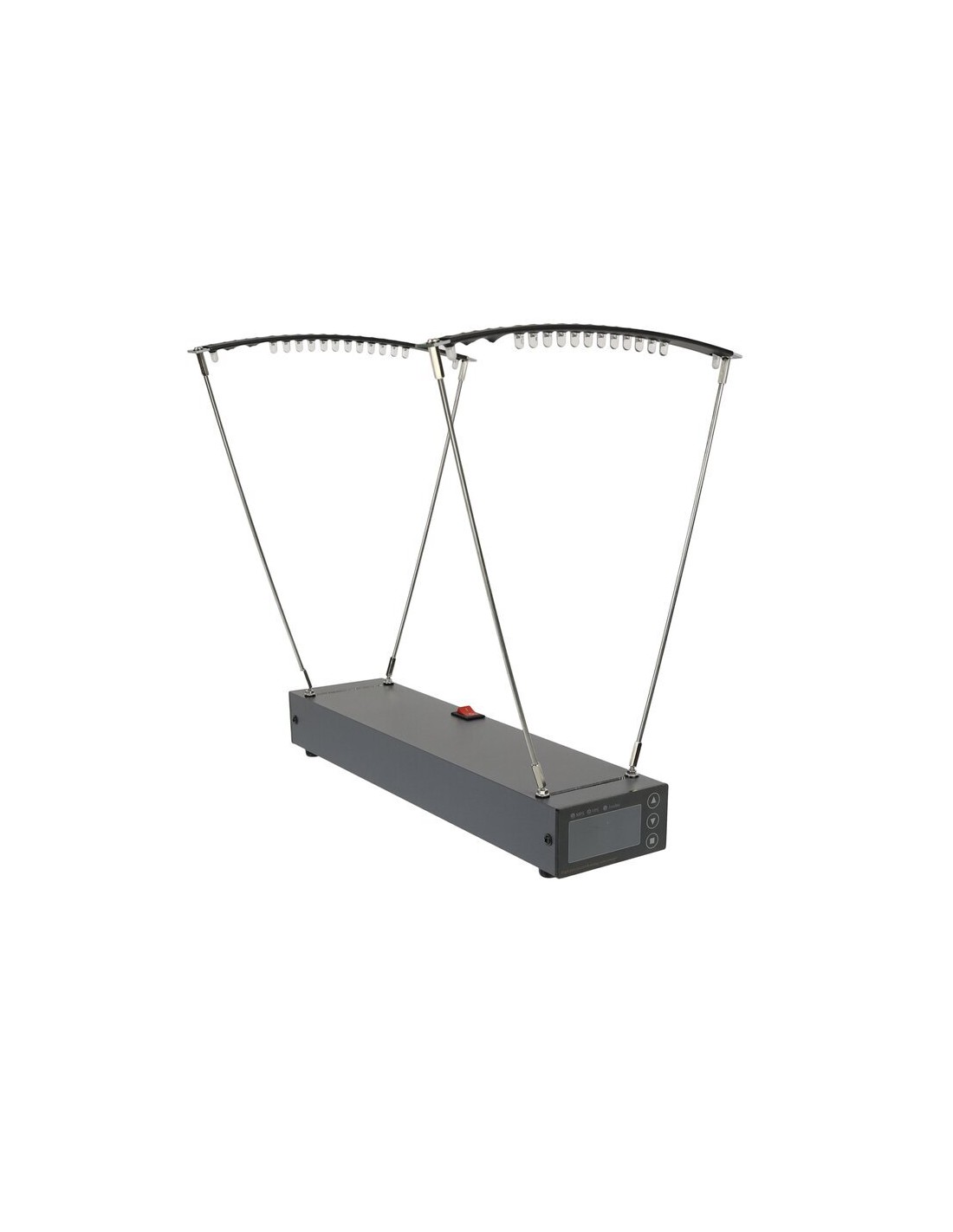

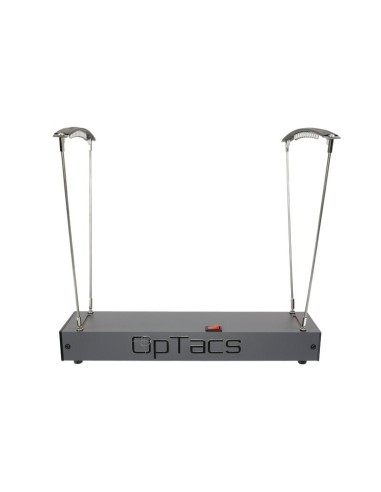

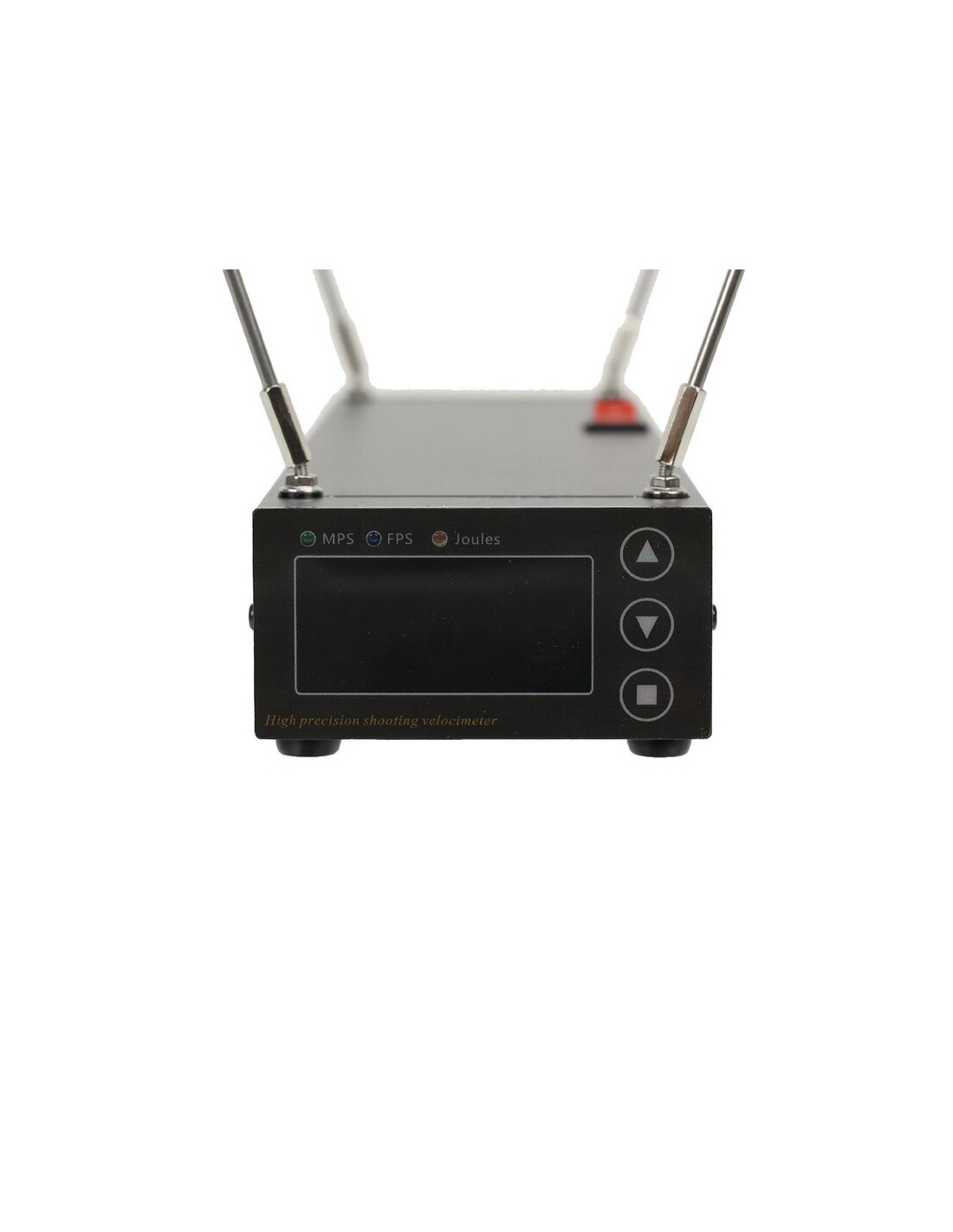

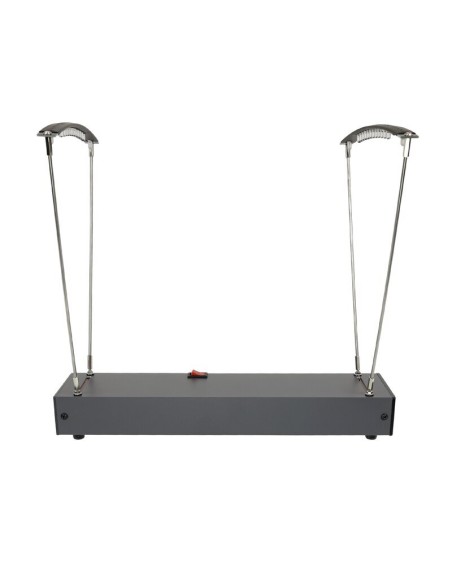

The OPTACS Ballistic Chronograph is a precise velocimeter specially designed for ballistic measurements. It allows to measure the velocity of arrows and offers a high accuracy of ±0.5%.

With a measuring range of 0-3000m/s (30-9999 fps), the velocity can be determined precisely. The bullet energy is measured in the range of 0.1-6000 joules. The arrow weight can be set individually to achieve even more accurate results.

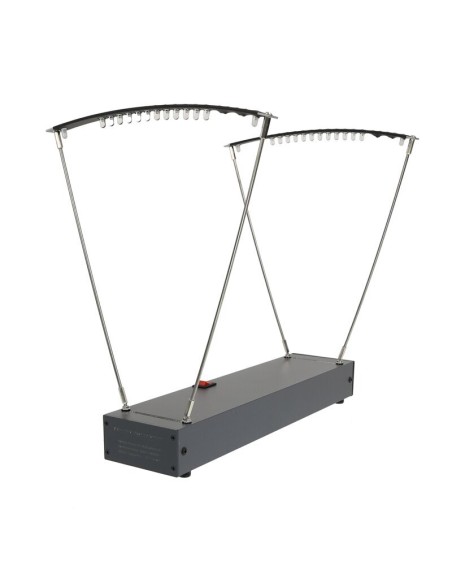

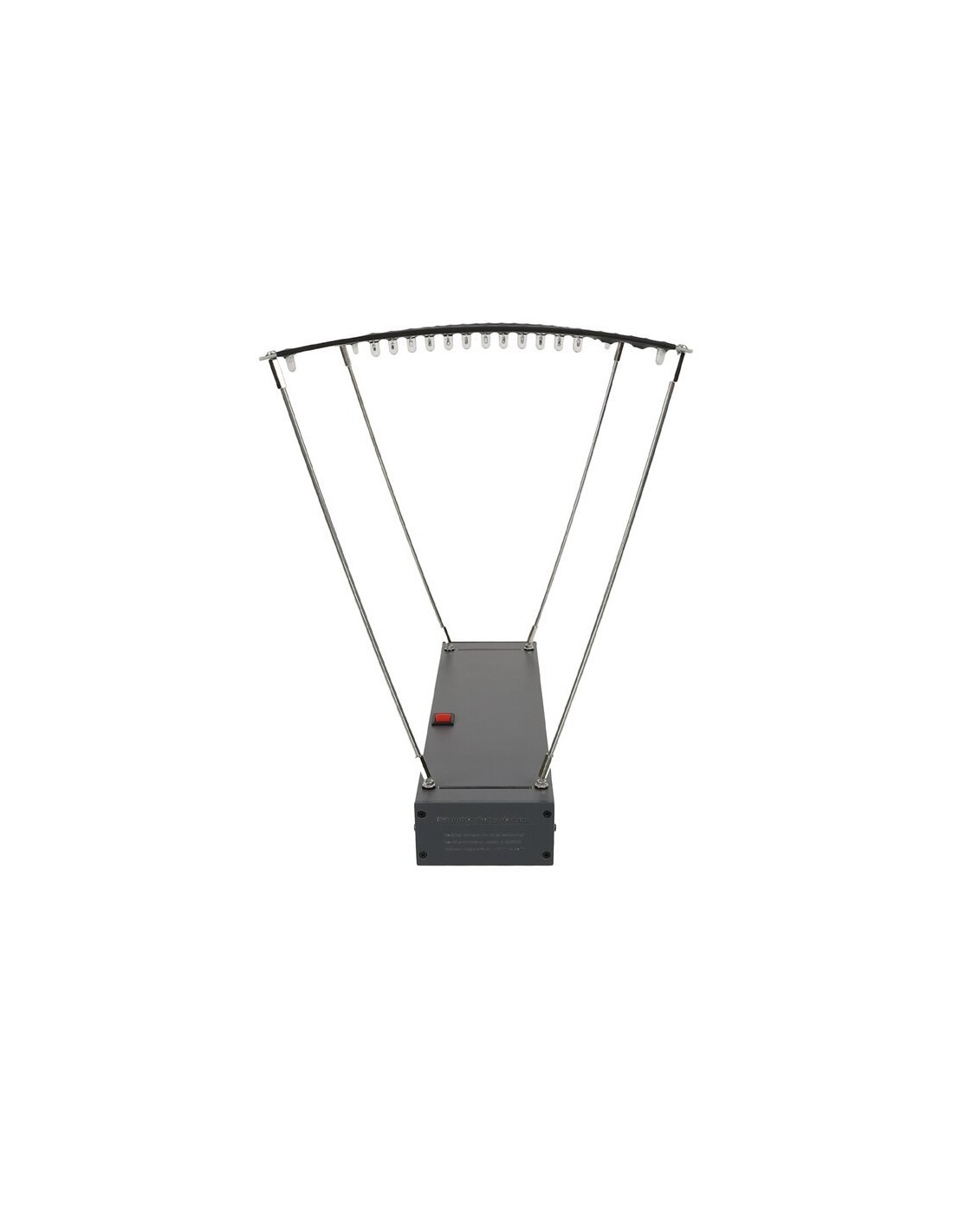

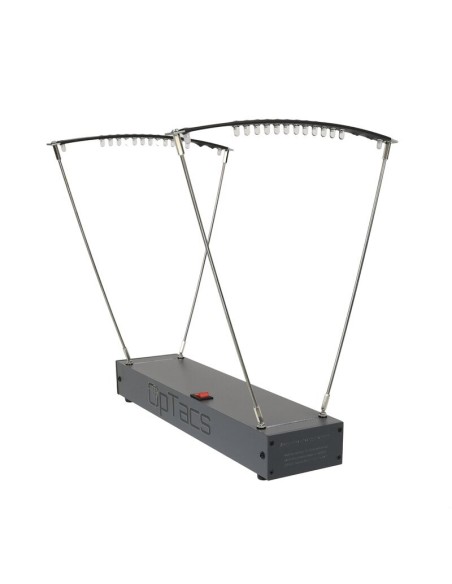

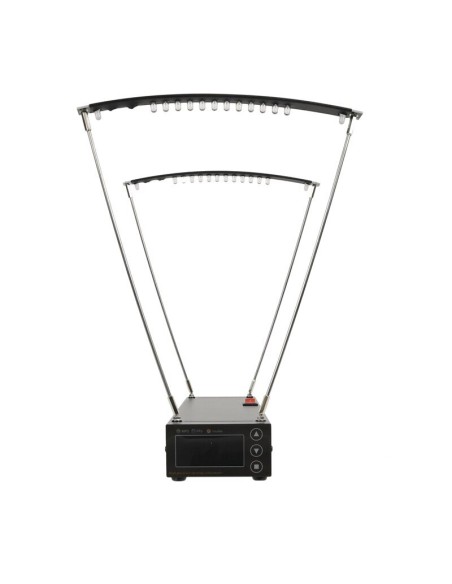

The OPTACS Ballistic Chronograph works with infrared light barriers, which guarantee a reliable and accurate measurement when shooting through. The minimum distance when measuring is 40cm to obtain accurate results.

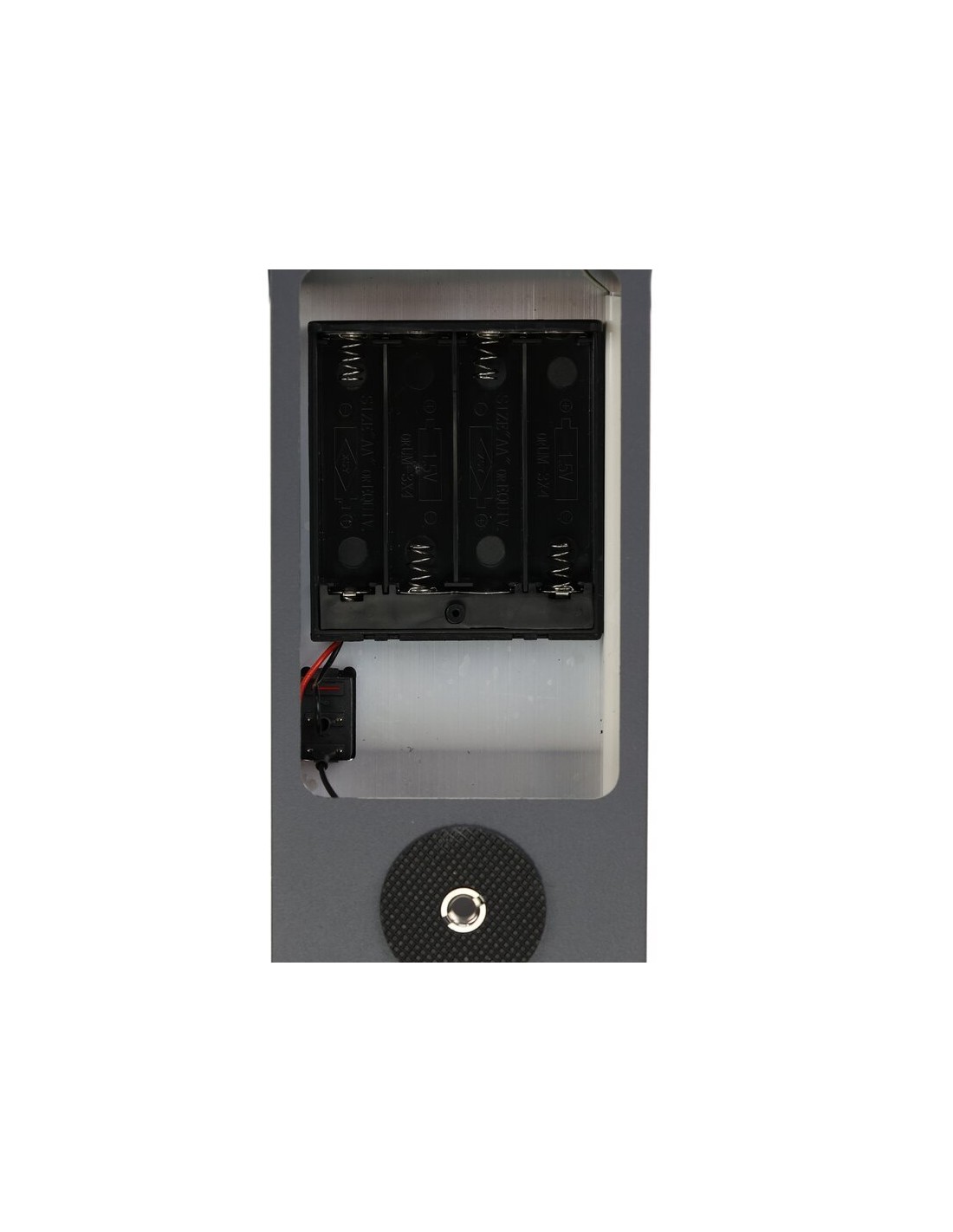

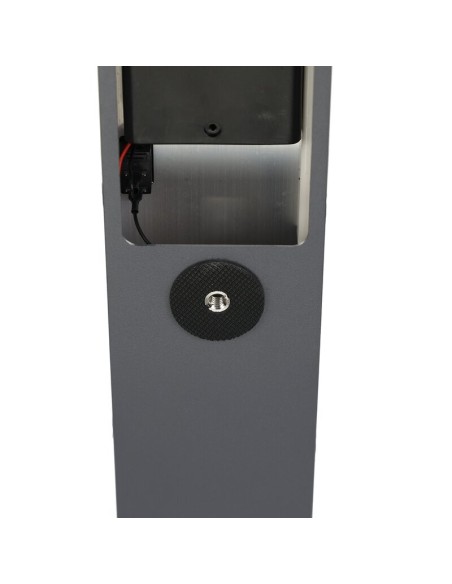

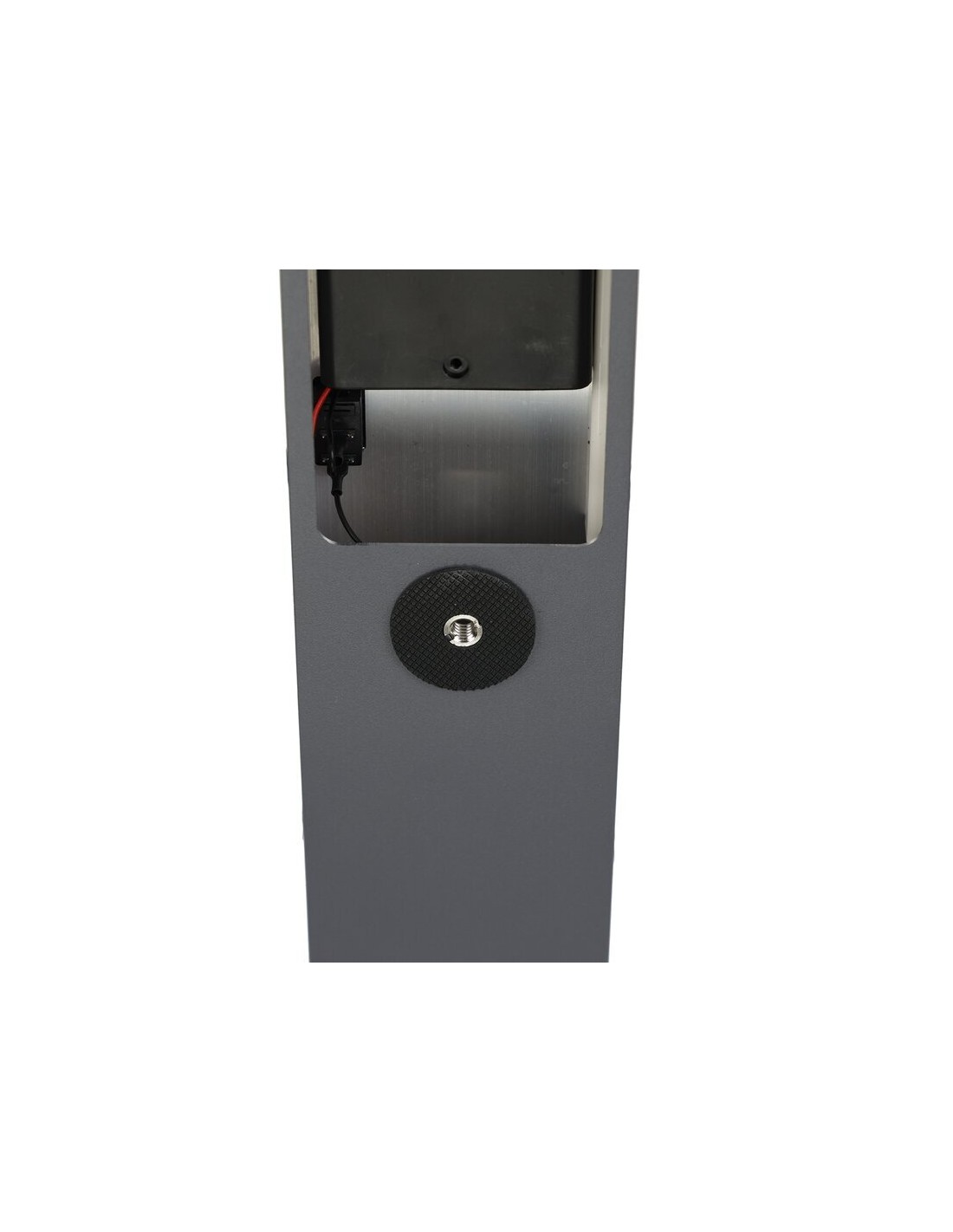

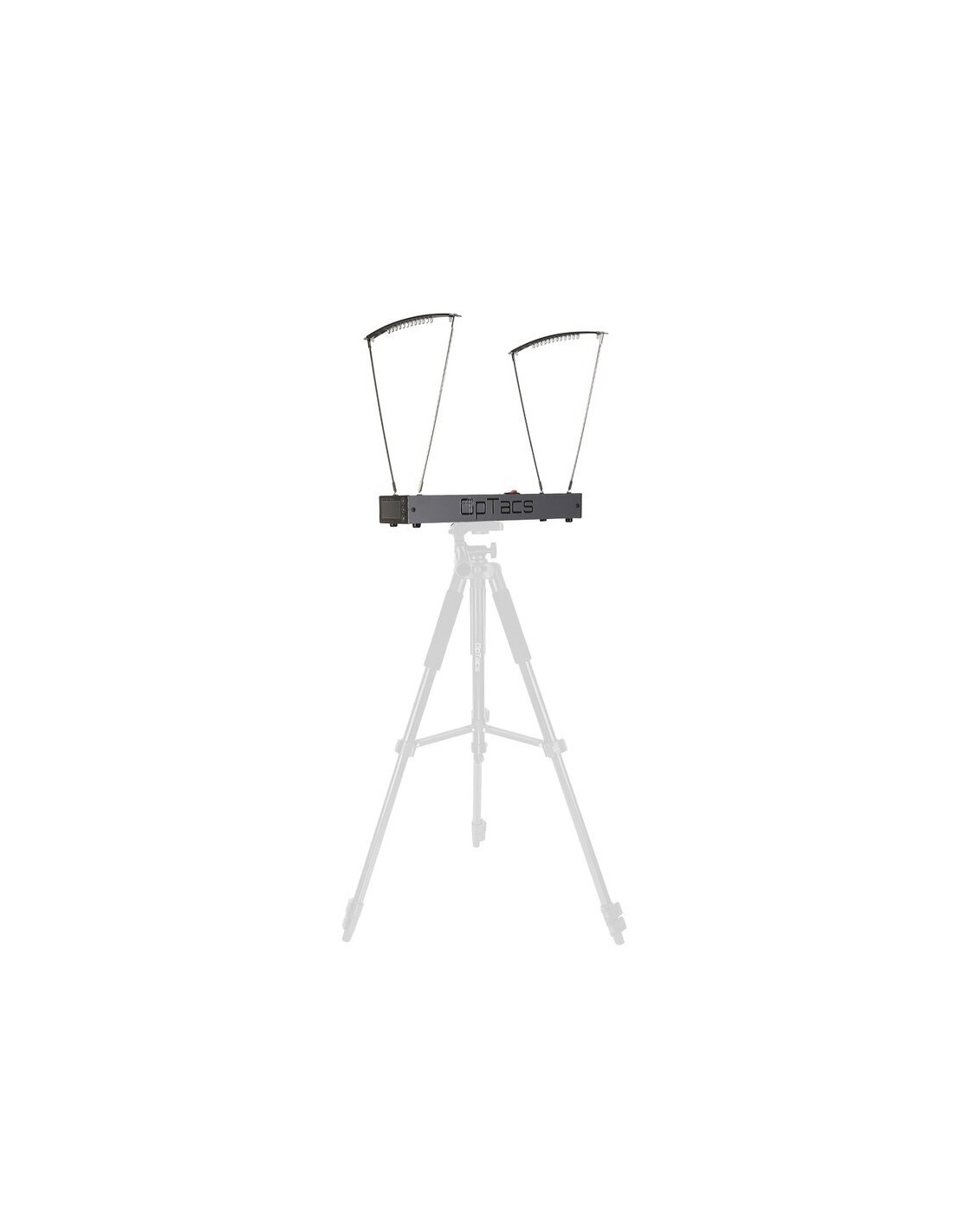

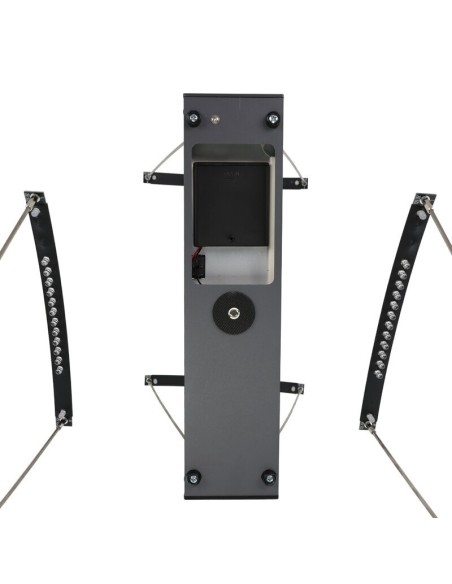

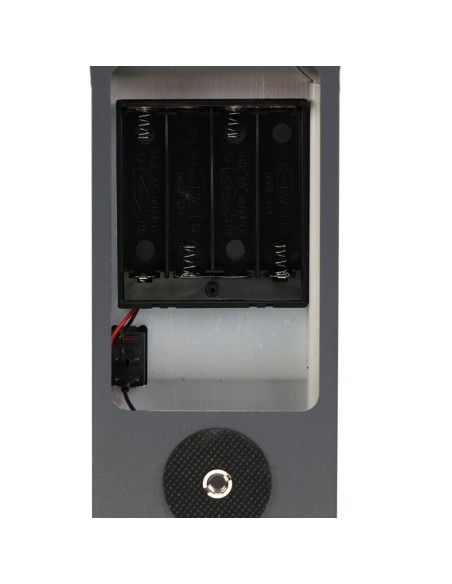

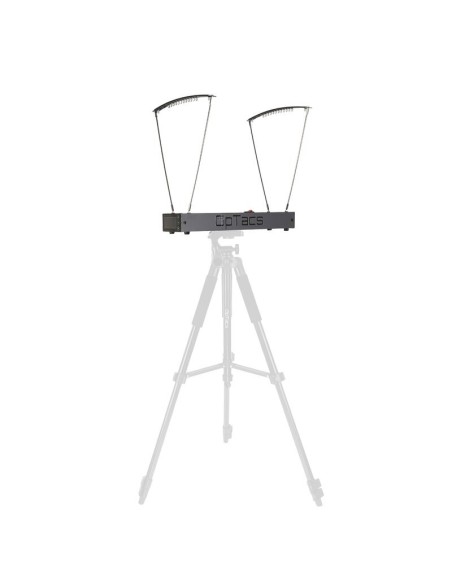

4x AA batteries are required to operate the speedometer, but are not included. With a weight of approx. 440g, it is light and handy. There is a mounting option for a tripod on the underside.

Technical data:
Voltage: 6V DC
Accuracy: ±0,5%
Measuring range (speed): 0-3000m/s (30-9999 fps)
Measuring range (bullet energy): 0,1-6000 Joule
Temperature range: -30°C to 60°C
Minimum measuring distance: 40cm
Batteries (not included): 4x AA
Weight: approx. 440g

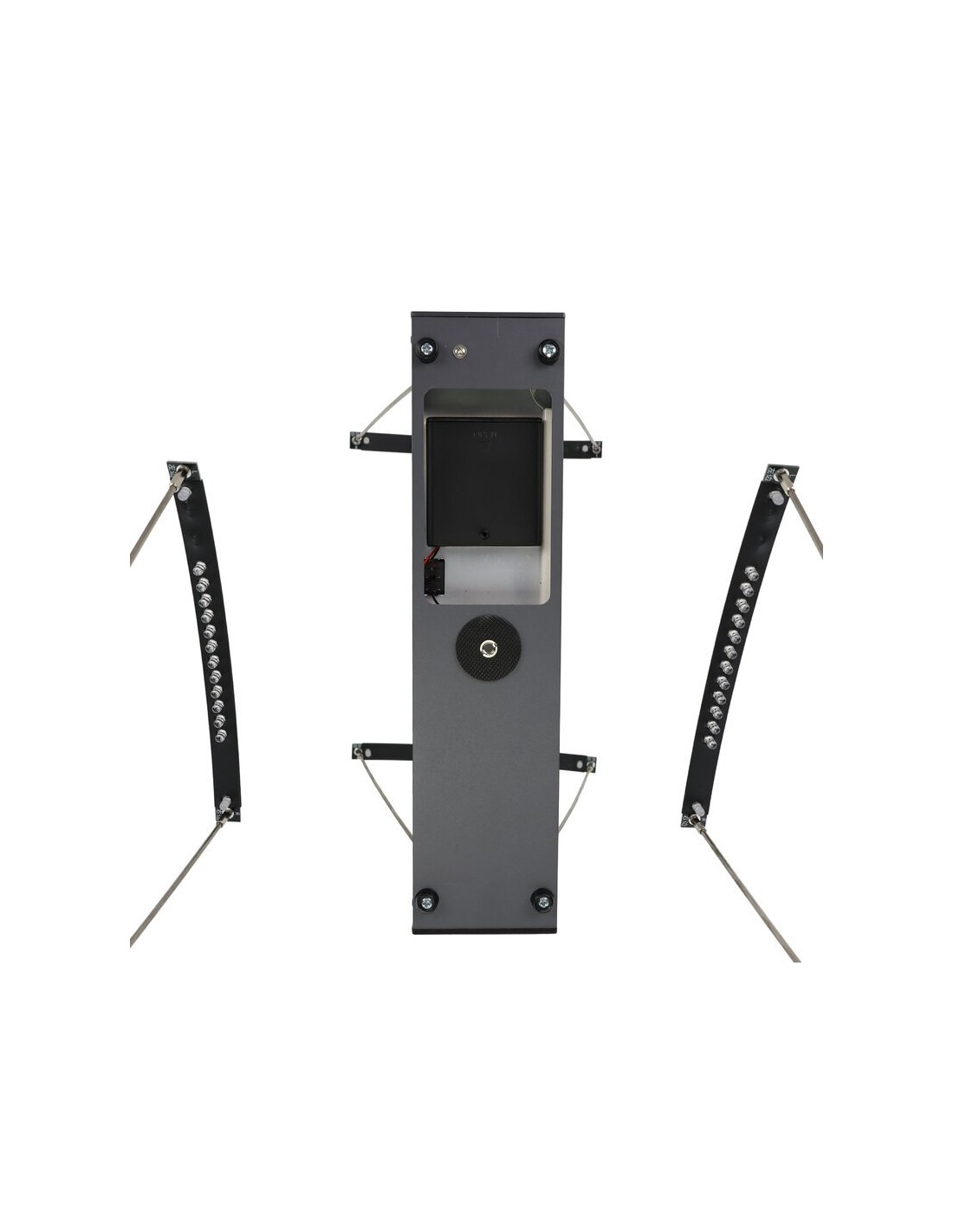

Scope of delivery:
1x speedometer
3x light bars
5x bars
